Save up to $1.71

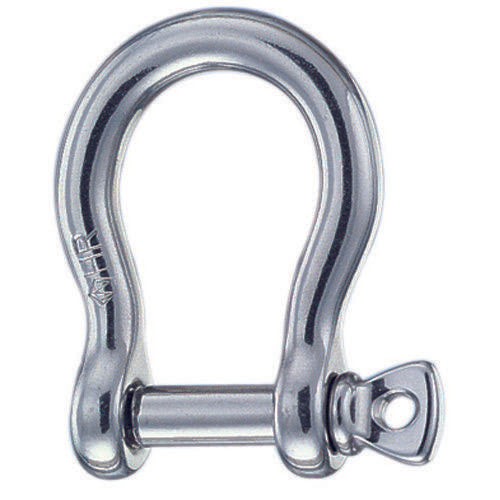

Self-locking Bow Shackle
Self-locking Bow Shackle
Wichard

Self-locking Bow Shackle

No reviews yet
Part Number:
Benefits
  • Large range of self-locking shackles
  • Head of shackle pin locked into one of the notches
  • Avoids accidental release due to vibrations
  • Available in various versions to suit many applications
  • Forged in 316L stainless steel
  • Designed and made in France

    Working Load (WL): for nautical applications.
    Working Load Limit (WLL): for industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

    WL: working load - BL: breaking load Parts # 1247, 1248 and 1207 are not self-locking shackles.

    SPECIFICATIONS

    Part No. Ø mm A mm B mm W.L. kg B.L. kg W.L.L kg Weight kg
    1241 4 18 8 320 700 140 0.009
    1242 5 23 10 400 1000 200 0.017
    1243 6 28 12 600 1500 300 0.030
    1244 8 37 16 1000 2700 540 0.068
    1245 10 47 20 1520 4300 860 0.137
    1246 12 55 24 2080 6000 1200 0.233
