Save up to $52.16
Type BULLFLEX 1 For Shaft Size Imperial Dia: 1"
Type BULLFLEX 1 For Shaft Size Imperial Dia: 1"
Vetus

Type BULLFLEX 1 For Shaft Size Imperial Dia: 1"

No reviews yet
Part Number:

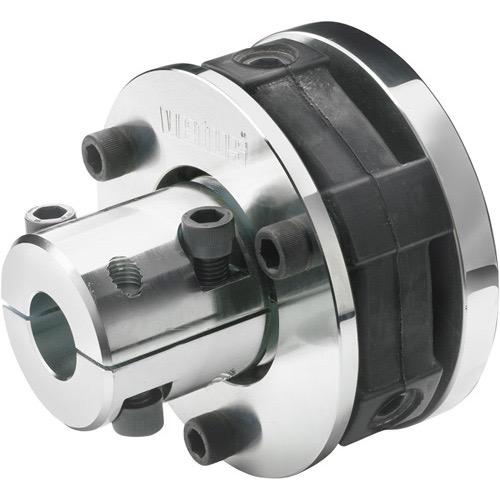

Ensures optimum damping of vibrations. Excellent alignment of the propeller shaft due to a special centering ring, with ease of installation.

Type
Bullflex
DIN 6270 B =
pleasure craft kW
(HP)/
100 shaft
RPM
DIN 6270 A =
commercial craft
kW (HP)/
100 shaft
RPM
maximum
torque
Nm
max. r.p.m.
at zero
misalignment
max. r.p.m.
at 2º
misalignment

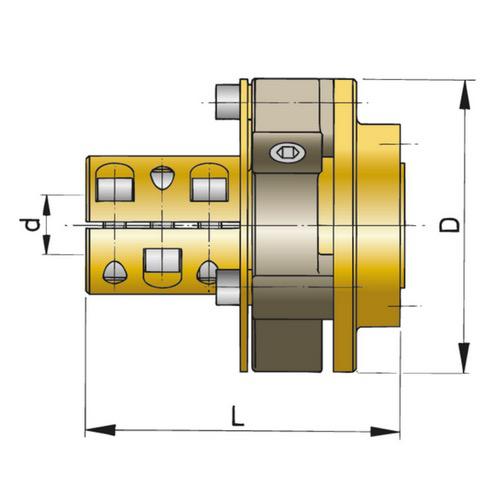

D
mm
L
mm
DIN DIN
6270B 6270A
1 0.8(1.1) 0.5(0.7) 75 45 7000 3500 100 85
2 1.6(2.1) 0.9(1.3) 150 90 6500 3250 120 120
4 3.1(4.3) 2.1(2.8) 300 200 6000 3000 150 152
8 6.3(8.5) 4.3(5.8) 600 410 5000 2500 170 166
12 9.8(12.8) 7.1(9.6) 900 540 4000 2000 200 177
16 12.6(17.1) 9.8(13.3) 1200 935 4000 2000 205 197
32 23.0(31.3) 18.6(25.3) 2200 1780 3600 1800 260 263
