Vetus
Rubber Bearing for Shaft - Brass Shell Type RL
No reviews yet
Rubber Bearing for Shaft - Brass Shell Type RL
Rubber Bearing for Shaft - Brass Shell Type RL
Rubber Bearing for Shaft - Brass Shell Type RL
Rubber Bearing for Shaft - Brass Shell Type RL
Images Indicative Only - Please carefully check product information and options
Vetus
Rubber Bearing for Shaft - Brass Shell Type RL
No reviews yet
Part Number:

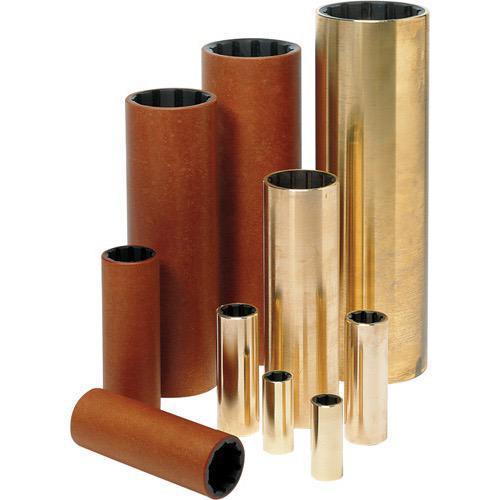

These cutless bearings are with polyurethane-rubber linings. The outer bushings are made of either brass or phenolic resin. Phenolic resin is lighter in weight, cannot corrode and can easily be replaced. These bearings are available for shaft diameters between Ø 20 and 100mm and from 1" through Ø 4". VETUS rubber bearings are also available for larger shaft diameters to special order.

Dimensions

Rubber bearings with shaft size (A) in mm and shell size (B) in mm. Length (C) in mm.
Brass shell

Phenolic shell
A
mm
B
mm
C
mm
RL2540 RL2540PH 25 40 100
RL3045 RL3045PH 30 45 120
RL3550 RL3550PH 35 50 140
RL4055 RL4055PH 40 55 160
RL4565 RL4565PH 45 65 180
RL5070 RL5070PH 50 70 200
RL6080 RL6080PH 60 80 240
RL7090 RL7090PH 70 90 280
RL8010 RL8010PH 80 100 320
RL9011 RL9011PH 90 110 360
RL1012 RL1012PH 100 125 400
