Motorized Ball Valve
Motorized Ball Valve
Motorized Ball Valve
Vetus

Motorized Ball Valve

No reviews yet

$18 Shipping - Free Shipping over $499 All across Australia

Customers Love Arnold's Boat Shop
Rated 4.2/5 based on 2,100+ reviews

42,000+ Products and Growing
The one-stop boat shop

Part Number:

Simple manual override
These motorised stainless steel (AISI 316) valves with a powder coated aluminium actuator housing enable any skin fitting/through hull to be electrically opened or closed from a remote location. Also suitable for every type of fuel, ignition protected. The G-threading meets the requirements of ISO 228-1 and 9093-1. The valves can be powered fully opened or closed in approximately 12 to 25 seconds. The powerful motors have a maximum torque of 40 or 220Nm.

Model

 MV12A MV24A MV24B
Power supply range 11-14 V 18-28 V 20-28 V
Operating current @
max. torque		 2.2 A ± 10% @
13.8 V		 1.2 A ± 10% @
27.6 V		 4.1 A ± 5% @
27.6 V
Static current 50±5 mA 25±5 mA 60±5 mA
Opening and closing ✓
Max. operation Torque 40Nm 220Nm
Manual over-ride tool Hex Key Wrench
Ambient temp. (Celsius) -20° to +45°
ISO8846 certified Yes
Control panels*

 MV12A MV24A MV24B
ELVPAN12 ✓ -
ELVPAN24 - ✓
WWCP ✓ ✓


*Ordered separately

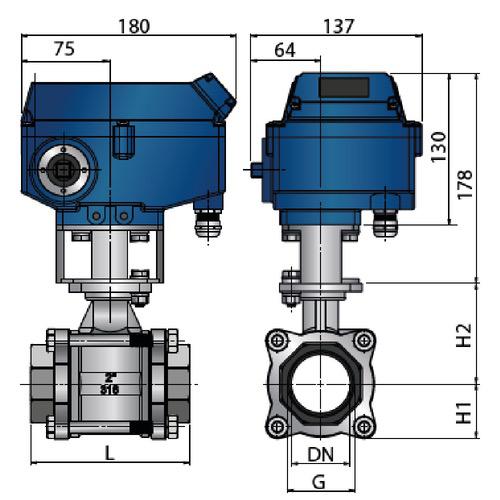

Dimensions

Type G
(ISO 228)		 DN
(mm)		 H1
(mm)		 H2
(mm)		 L
(mm)		 Weight
(kg)
MV12A1/2 MV24A1/2 1/2” 15 22.5 42 72 2.2
MV12A3/4 MV24A3/4 3/4” 20 22.5 48 80 2.4
MV12A1 MV24A1 1” 2.4 30 55 85 2.8
MV12A11/4 MV24A11/4 1 1/4” 32 36.5 60 105 3.4
MV12A11/2 MV24A11/2 1 1/2” 38 40 70 113 4.2
MV24B2 2” 50 46.5 85 132 7.8
