L380 Suspension Pedestal/Base - 330-380mm
L380 Suspension Pedestal/Base - 330-380mm
L380 Suspension Pedestal/Base - 330-380mm
L380 Suspension Pedestal/Base - 330-380mm
L380 Suspension Pedestal/Base - 330-380mm
Relaxn

L380 Suspension Pedestal/Base - 330-380mm

No reviews yet
Part Number:
Part No. Description Overall
Adjustable Height (mm)
Strut
Pressure
(N)
Rated
Weight
(kg)
Shock
Travel
(mm)

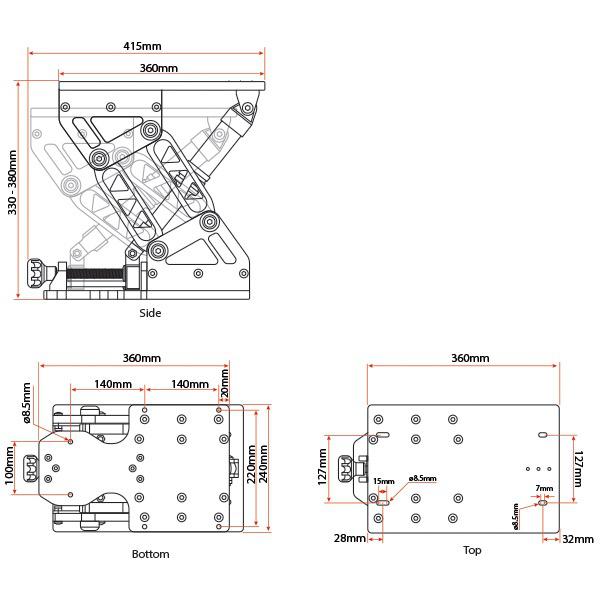

Dimensions
L x W x H
(mm)
293856 L380 Suspension Base Min 330 to Max 380 1421 75 - 150 80 415 x 240 x 380

  • Precision engineered suspension bases featuring SMS technology (Shock Mitigation System).
  • Manufactured from 5052 Marine Grade aluminium for strength and high corrosion resistance.
  • Anodised finished for increased protection against the harsh marine environment.
  • Preloaded Nitrogen filled heavy-duty gas strut.
  • CNC precision cut aluminium.
  • All fastenings are 304G stainless steel.
  • Nylon washers provide smooth, silent operation.

    Specifications

    Part No. 293856
    Aluminium Type 5052 Marine Grade
    Fastenings 304G Stainless Steel & Nylon Washers
    Base Weight 15kg
    Height Adjustable 330 to 380mm
    Rated Weight Setting 75kg - 150kg
    Shock Mitigation System Preloaded Nitrogen Filled Gas
    Working Pressure (Strut) 1421N
    Shock Travel 80mm
    Mounting Holes 6 x Ø 8.5mm
