Transom Door Latch - Stainless Steel - Strike: Flush
Transom Door Latch - Stainless Steel - Strike: Flush
Marine Town

Transom Door Latch - Stainless Steel - Strike: Flush

No reviews yet
Part Number:

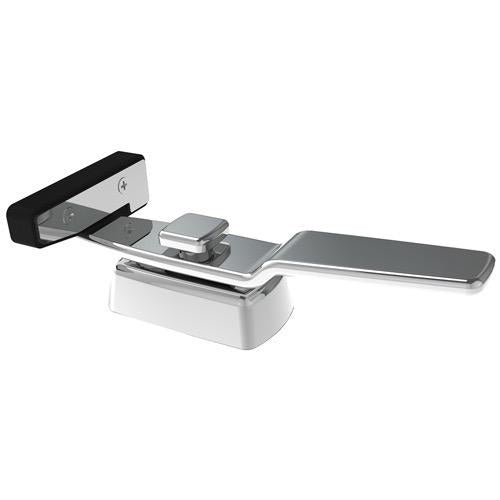

Heavy duty door latch designed to suit transom and large doors. Design incorporates spring loaded push button release action which allows for one handed operation. Can be rotated through 90 degrees and is locked in position upon release of the button. Supplied complete with striker plate and can be mounted for either left or right hand orientation.

Features:
  • Contemporary design.
  • Door can be opened easily with one hand push button operation.
  • Latch can be rotated 90° and locked in position for security.
  • Works on both right and left hand transom doors.
  • Screw size #10 for strike.
  • Screw size 1/4" for 193331 latch body.
  • Screw size #10 for 193332 latch body.

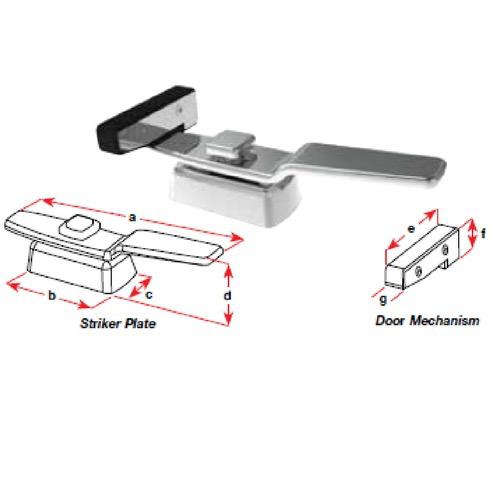

    BLA
    Code
    a
    mm
    b
    mm
    c
    mm
    d
    mm
    e
    mm
    f
    mm
    g
    mm
    193330 166 73 39 43 108 30 20.5
    193334 213 84 47 53 108 30 20
