Trim Tab Reverse Mount Kit - Electro Polished - 9"(L) x 12"(W) - 12V (Switch Kit Required)
Trim Tab Reverse Mount Kit - Electro Polished - 9"(L) x 12"(W) - 12V (Switch Kit Required)
Trim Tab Reverse Mount Kit - Electro Polished - 9"(L) x 12"(W) - 12V (Switch Kit Required)
Lenco

Trim Tab Reverse Mount Kit - Electro Polished - 9"(L) x 12"(W) - 12V (Switch Kit Required)

No reviews yet

$18 Shipping - Free Shipping over $499 All across Australia

Customers Love Arnold's Boat Shop
Rated 4.2/5 based on 2,100+ reviews

42,000+ Products and Growing
The one-stop boat shop

Part Number:
  • The reverse mount trim tab has a short ram, perfect where space is limited on the transoms or reverse if there is a swim platform.

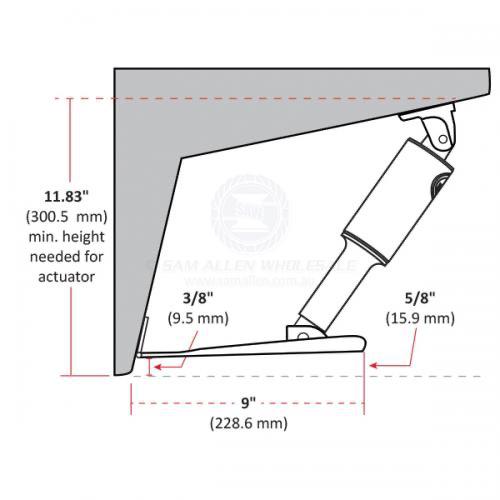

  • The actuator can be installed on the underside of a swim platform and does not impede tab movement (as seen in Diagram A).
  • Lenco Electric Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small boat or a large yacht. The
    Lenco ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics.
  • Plates 12 gauge - 304G stainless steal and 1/8" diameter hinge pin.
  • Equipped with a fast response electric actuators for precise control.
  • Fully submersible with all Plug and Play Deutsch connections.
  • Compliance: CE Certified.
  • 5 Year Warranty (Recreational Use).

    Kit Includes:
  • 2 x 12 gauge stainless steel trim tab blades L 9" x W 12".
  • 2 x 101XDS actuators with 6' lead and Deutsch plugs.
  • 2 x 20' actuator extension wiring harnesses.
  • 2 x Upper mounting bracket with gland seal.
  • 2 x XD lower mounting bracket.
  • All necessary stainless steel mounting hardware.

    NOTE: Switch kits sold separately. 12 Volt only.

    Other Details:

    Part No. Series Switch Kit Volts
    (V)    		 Size
    L x W (in)    		 Size
    L x W (mm)    		 Hinge
    Height
    (mm)    		 Min
    Transom Height
    (mm)    		 Approx Boat
    Length (Mtr)    		 Finish
    55498 Reverse Mount Not Incl 12 9 x 12 229 x 305 5 300 5-8 Electro Polished
