Lenco
12V Standard Mount Trim Tab & Double Rocker Switch Kit
No reviews yet
12V Standard Mount Trim Tab & Double Rocker Switch Kit
12V Standard Mount Trim Tab & Double Rocker Switch Kit
12V Standard Mount Trim Tab & Double Rocker Switch Kit
12V Standard Mount Trim Tab & Double Rocker Switch Kit
Images Indicative Only - Please carefully check product information and options
Lenco
12V Standard Mount Trim Tab & Double Rocker Switch Kit
No reviews yet
Part Number:
Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt.
Lenco trim tabs make your boat ride smoother, drier, faster, more fuel efficient and increase safety, whether on a small runabout or a mega-yacht.
Lenco’s ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco trim tabs are oil-free and environmentally friendly.

When choosing the correct Trim Tabs for your boats application, firstly determine what size plates suit your size of boat then how much transom height clearance you have, this will determine whether you need a standard mount or edge mount plates.

FEATURES
  • Softer, Smoother, Safer ride.
  • Lenco Electric Actuators react instantaneously unlike hydraulic tabs.
  • Fuel savings.
  • Can be installed on any boat with any engine.
  • Easy retrofit to boats with hydraulic tabs.
  • Fast and easy installation.

    The Standard Mount Trim Tab is perfect for boats with a standard or high transom requiring a maximum height of 14" (356mm) to mount the actuator.

    Double Rocker Switch
  • No auto retract.
  • Carling double rocker switch.
  • 12/24 volt.
  • Plug and play Deutsch connectors.
  • 36" power pigtail and mounting hardware.
  • Installation hardware included.
  • Does not require control box.

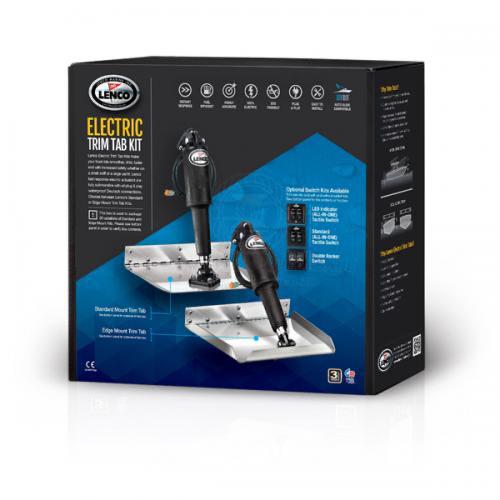

    Standard Mount Trim Tab Kit:
  • 2 x Standard Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with a 5/8" flared trailing edge and 1/8" diameter hinge pin.
  • 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
  • 2 x actuator extension wiring harness (6m) with Deutsch connectors.
  • 1 x set of stainless steel fasteners.
  • 2 x upper mounting bracket with gland seal.
  • 2 x lower mounting bracket.
  • Lenco owner’s installation manual.
  • 5 Year Warranty (Recreational Use).

    NOTE: 24 Volt Option Available.
    *All standard mount trim tabs kits are supplied in retail packages


    Other Details:

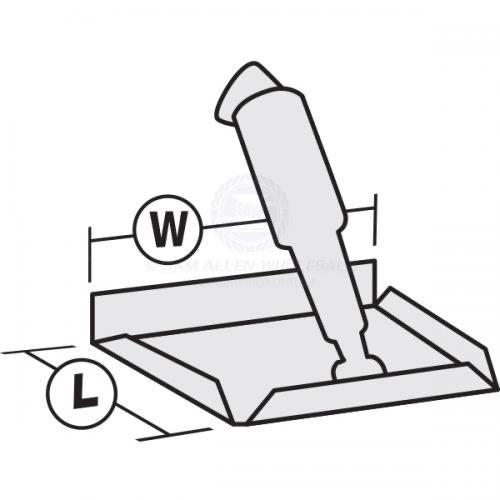

    Part No. Description Switch
    Kit
    Volts
    (V)
    Size
    L x W (in)
    Size
    L x W (mm)
    Hinge
    Height
    (mm)
    Min
    Transom Height
    (mm)
    Approx Boat
    Length (Mtr)
    Finish
    Double Rocker Switch Option
    55410 Standard Mount Trim Tab & Double Rocker Switch Kit Double Rocker 12 9 x 9 228 x 228 51 356 4.3 - 5.5 Matte
    55412 Standard Mount Trim Tab & Double Rocker Switch Kit Double Rocker 12 9 x 12 228 x 305 51 356 4.9 -7.6 Matte
