Blower - Heavy Duty - Flangemount - 75mm - 12V - 4.2 m3/minute
Blower - Heavy Duty - Flangemount - 75mm - 12V - 4.2 m3/minute
Blower - Heavy Duty - Flangemount - 75mm - 12V - 4.2 m3/minute
Jabsco

Blower - Heavy Duty - Flangemount - 75mm - 12V - 4.2 m3/minute

No reviews yet
Part Number:

High capacity output with quiet running Delrin rotor. Continuously rated motor maximum 1 hour with 50% duty cycle = 1 hour on then 1/2 hour off for cool down.

Features:

  • Tough reinforced plastic housing
  • Mount to any flat surface
  • Slip-On inlet ducting connection
  • Efficient high volume air flow
  • Low current draw
  • Corrosion-resistant materials throughout
  • N.M.M.A Type accepted
  • DC models comply with USCG electrical regulations of title 33, chapter I, part 183; subpart I and ISO 8846 MARINE for ignition protection
  • DC models comply with ISO 9097 marine
  • DC models conform with EN 50081-1 for suppression of electromagnetic interference

    Specifications:

  • Air flow - 4.2 m3/minute (150cfm)
  • Voltage - 24Vdc
  • Amperage - 3.3
  • Fuse size - 5A
  • Weight - 2.3 kg (5 lb)

    Wiring for DC models : Use stranded copper wire. For lengths up to 25 feet (7.6m) from power source: Use 12 gauge wire for 12 Volt and 14 gauge wire for 24 Volt. Use larger wire for longer lengths. Use a 10 amp rated on-off switch in positive side of circuit (Model 44960-0003). Circuit must be protected with a fuse. Suggested fuse sizes are listed in the specifications.

    Notice: blower should be mounted away from extreme heat (More than 54.4 Celsius) to prevent distortion of blower wheel or housing.

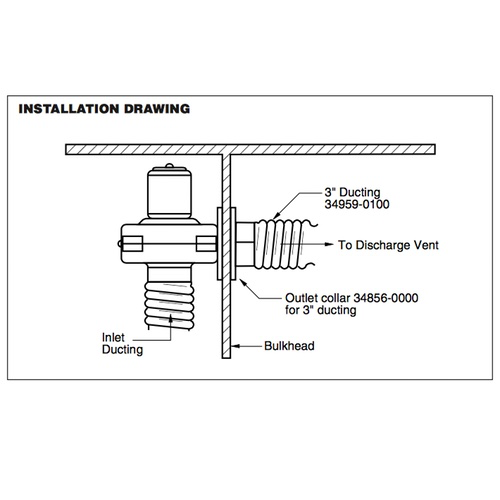

    For an exposed inlet, ventilator intake screen No. 34764-0000 provides a safe and attractive protection inlet. Note: This blower may also be mounted with inlet through bulkhead, using intake collar No. 34943-0000.

    Jabsco blowers are primarily intended for intermittent duty cycles such as evacuating fuel vapours from bilge areas. If desired, they may also be used for other general air circulation applications with longer duty cycles. However, when doing so, it should be noted that the maximum motor life is approximately 1000 hours. Therefore, the blower should only be used for applications if this length of service is acceptable.

    Operation: See following warning placard statement:

    The "WARNING" placard supplied with blower must be mounted adjacent to engine ignition switches (All locations) to comply with Title 33, Part 1834; Subpart K, USCG ventilation regulations.*

    *Additional warning placards are available from factory by requesting form 43003-0418.
