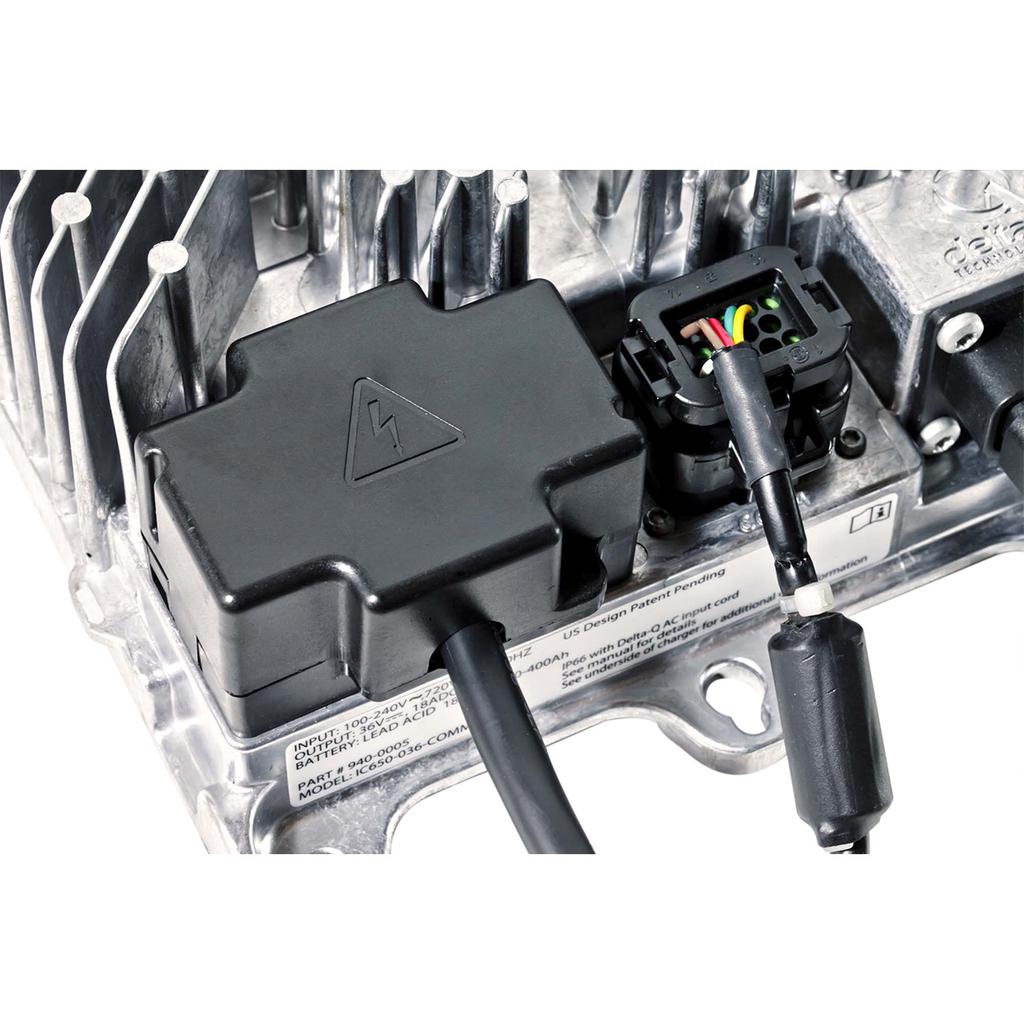

Industrial Battery Charger IC650
Industrial Battery Charger IC650
Industrial Battery Charger IC650
Delta-Q

Industrial Battery Charger IC650

No reviews yet

$18 Shipping - Free Shipping over $499 All across Australia

Customers Love Arnold's Boat Shop
Rated 4.2/5 based on 2,100+ reviews

42,000+ Products and Growing
The one-stop boat shop

Part Number:
Features
Applications for IC Series chargers include electric lift trucks and automated guided vehicles (AGVs), scooters and motorcycles, floor care machines, aerial work platforms and utility vehicles. IC Series chargers provide the flexibility to charge either lead acid (wet/flooded, sealed AGM or gel) or lithium-ion batteries. The three models in the IC Series lineup provide 650, 900 and 1200 watts of DC output power, respectively, and all are available in 24-, 36- and 48-volt models.

IC Series chargers are validated for a long service life in challenging on-board applications, providing superior equipment uptime. IP66-rated ingress protection seals out dirt and fluids. Mechanical design and component selection help resist factors such as vibration, shock and temperature extremes. All Delta-Q chargers are made in a world-class facility for high reliability solutions with very low defect rates.

Delta-Q products provide “charge quality” for lithium-ion and lead acid batteries using charge profiles developed in Delta-Q’s battery lab. These high-performance profiles balance battery life, longevity and charge time requirements. Delta-Q has commercialized more than 50 profiles. Users experience better runtime and flexibility for different battery chemistries.

Optional CAN bus communication enables a link between the charger and other components, providing for safe lithium-ion battery charging, and machine diagnostics and servicing information. IC Series chargers store charge cycle data, which is accessible using their built-in USB host port. Through the host port, software updates and new charge profiles can be installed using a pre-programmed USB flash drive.

All IC Series chargers have a wide AC input range and are usable on any single-phase electrical grid worldwide.

Specifications
DC Output 24 VDC 36 VDC 48 VDC 24 VDC 36 VDC 48 VDC
CAN bus and Modbus communication No No No Yes Yes Yes
Enerdrive Part Number 940-0001 940-0002 940-0003 940-0004 940-0005 940-0006
Nominal DC Output Voltage 24V 36V 48V 24V 36V 48V
Maximum DC Output Voltage 36V 54V 72V 36V 54V 72V
Maximum DC Output Current 27.1A 18.1A 13.5A 27.1A 18.1A 13.5A
Maximum DC Output Power 650W 650W 650W 650W 650W 650W
Deep Discharge Recovery – (minimum voltage) 1.2V 1.8V 2.4V 1.2V 1.8V 2.4V
Maximum Interlock Current 1A
Battery Type Lead acid (Wet / AGM / GEL), Lithium Ion
Reverse Polarity Electronic protection with auto-reset
Short Circuit Electronic current limit
AC Input
AC Input Voltage Range 85 – 270 Vac
Normal AC Input Voltage 100 – 240 Vac
Normal AC Input Frequency 50 / 60 Hz
Maximum AC Input Current 7.5 A
Nominal AC Input Current 7.3 A @ 100 Vac | 6 A @ 120 Vac | 3.1 A @ 230 Vac | 2.9 A @ 240 Vac
Nominal AC Power Factor > 0.99 @ 120 Vac – > 0.98 @ 230 Vac
Regulatory
Efficiency 93.5% peak, California Energy Commission compliant
Safety Approval pending to UL1564, CSA 107.2, EN 60335-2-29
Emissions FCC Part 15 / ICES 003 Class A, EN55011
Immunity EN61000-3-2, EN61000-3-3, EN 61000-4-2/-3/-4/-5/-6/-11
Mechanical
Dimensions 25.2 x 18.6 x 8 cm
Weight < 3 Kg
AC Input connector IEC320 / C14 (requires country-specific cord)
DC Output connector M6 threaded fasteners for ring terminals
Service port Sealed (IP66) USB 2.0 Host Port (Type A) with dust cover
Mounting holes Allows for safe installation on shelf, wall or bulkhead
Cooling Normal operation in any orientation with passive cooling only
Environmental
Enclosure IP66 (NEMA4)
Operating Temperature -40°C – 65°C (de-rated at >40°C)
Storage Temperature -40°C – 85°C
Communications
