Blue Sea Systems
WeatherDeck 12V DC Waterproof Panel - 8 Positions
No reviews yet
WeatherDeck 12V DC Waterproof Panel -  8 Positions
Images Indicative Only - Please carefully check product information and options
Blue Sea Systems

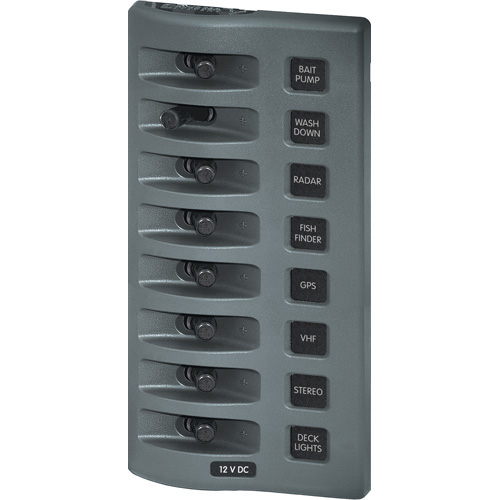

WeatherDeck 12V DC Waterproof Panel - 8 Positions
No reviews yet
Part Number:
  • Integrated switch guards reduce the risk of accidental switching
  • Panels can be mounted in four different orientations
  • Panel front rated IP67 when properly mounted with watertight mounting gasket
  • IP67 ñ protected against immersion up to 1 meter for 30 minutes
  • UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws

    Specifications:
    Weatherproof: Waterproof
    Positions: 8
    Nominal Voltage: 12V DC 24V DC
    Circuit Protection: None
    Maximum Amperage: 15A @ 12V DC (per circuit)
    Panel Cumulative Rating: 45A
    Material: Reinforced Polycarbonate
    Height: 7.70in (195.58 mm)
    Width: 3.88in (98.55 mm)
    Depth: 2.50in (63.5 mm)
    Weight: 1.55lb (0.7 kg)
