Blue Sea Systems

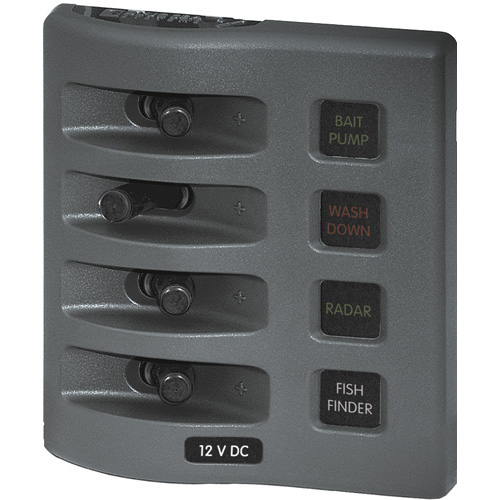

WeatherDeck 12V DC Waterproof Fuse Panel - Gray 4 Positions

No reviews yet
Save up to $16.60
WeatherDeck 12V DC Waterproof Fuse Panel - Gray 4 Positions
Blue Sea Systems

WeatherDeck 12V DC Waterproof Fuse Panel - Gray 4 Positions

No reviews yet
Part Number:
  • Panel front rated IP67 when properly mounted with watertight mounting gasket
  • IP67 ñ protected against immersion up to 1 meter for 30 minutes
  • Designed for flybridge and open cockpit applications
  • Independent label backlighting circuit for remote switching and dimming
  • Available in 2, 4, 6, and 8 circuit models
  • Each panel can be mounted in four different orientations
  • Integrated ATO/ATC fuse based circuit protection
  • Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

    Specifications:
    Weatherproof: Waterproof
    Positions: 4
    Nominal Voltage: 12V DC
    Circuit Protection: Fuse
    Maximum Amperage: 15A @ 12V DC (per circuit)
    Panel Cumulative Rating: 60A
    Backlit Label: Bicolored LED
    Backlighting Amperage: 10mA /Illuminated Circuit
    Backlighting Voltage: 12V DC
    Material: Reinforced Polycarbonate
    Height: 4.30in (109.22 mm)
    Width: 3.88in (98.55 mm)
    Depth: 2.50in (63.5 mm)
    Weight: 0.90lb (0.41 kg)
