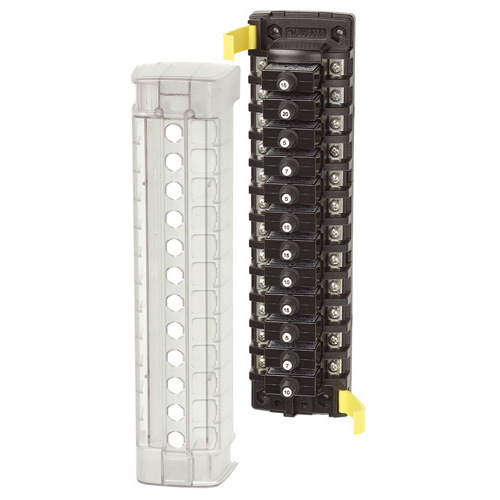

ST CLB Circuit Breaker Block - 12 Independent Circuits
Blue Sea Systems

ST CLB Circuit Breaker Block - 12 Independent Circuits

No reviews yet
Part Number:
  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover
  • Accepts square labels

    Circuits: 12
    Maximum Amperage: 32A (per circuit), 40A (per jumped circuit group)
    Maximum Voltage: 32V DC
    Mounting: #8 Screw (M4) or #8 Nut
    Source: Independent Source
    Minimum Operating Temperature: -10∞ C
    Maximum Operating Temperature: 60∞ C
    Mounting Centers: 10.13in (257.3 mm)
    Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
    Height: 11.19in (284.23 mm)
    Weight: 1.50lb (0.68 kg)
