Heavy Duty Four Position Battery Switches
No reviews yet
Heavy Duty Four Position Battery Switches
Heavy Duty Four Position Battery Switches
Images Indicative Only - Please carefully check product information and options
Heavy Duty Four Position Battery Switches
No reviews yet
Part Number:

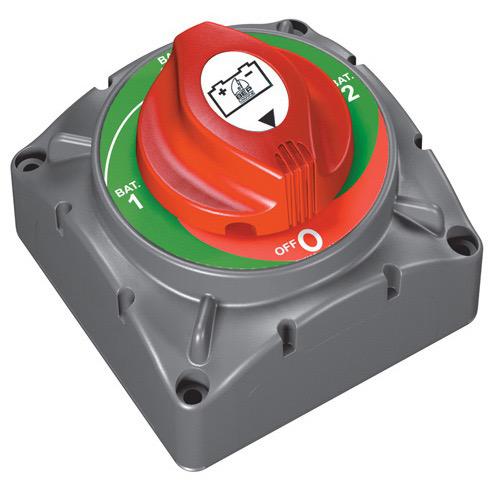

  • The 720 Heavy-duty Battery Switches is well suited to larger vessels, being capable of handling the high electrical loads found on today’s boats and RV’s plus starting large diesel engines
  • Rated at 600A continuous and 2500A cranking
  • Can be rear panel, or surface mounted
  • Uses the same proven style of self cleaning sliding copper contact used inside the 701
  • Interchangeable labeling system allowing a full range of applications (Part # 713 or 715 on page 84)
    Other Details:
    in LxWxH: 4" x 4" x 3.5"
    mm LxWxH: 102 x 102 x 90 mm
    Rating (A DC):
      Cont (1 hr): 600
      Inter (5 min): 800
      Crank (10 sec): 2500
    Voltage (V DC): 48
    Operation: On/Off
    Stud size Studs x (in/mm): 2x 1/2" / 12mm
    Cable to meet rating (AWG/mm): 2x 3/0 / 2x 95mm_
