5:1 Hand Brake Winch
5:1 Hand Brake Winch
5:1 Hand Brake Winch
Atlantic

5:1 Hand Brake Winch

No reviews yet
Part Number:

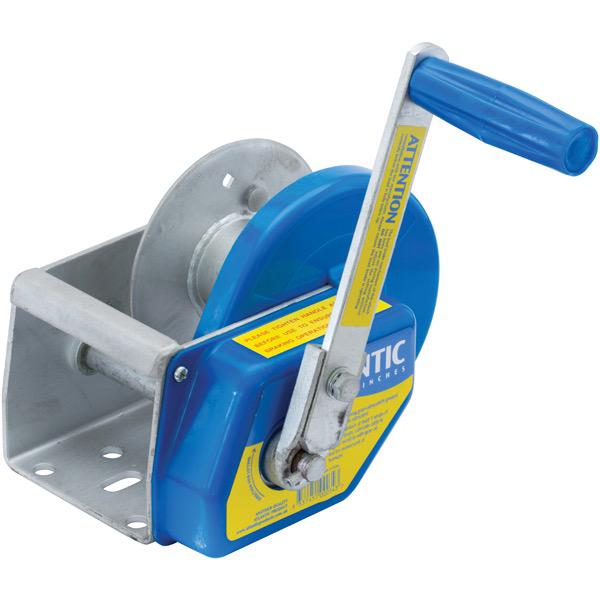

Atlantic® Brake Winch Series
The Atlantic® range of Brake Winches are available in 3 different ratio sizes – 3:1, 5:1 and 10:1 with load
capacity ratings operating from 200kg to 500kg. The range offers the option of cable, Atlantic Rope™ or
no cable and is suitable for pulling or lifting. The self-actuating automatic braking mechanism ensures
the suspension of loads and jerk-free movement when lowering a load under pressure. The carbon
copper fibre brake pads also ensure that a load is always secured under braking load.

  • The self actuating automatic braking mechanism ensures the suspension of loads and 'jerk-free' movement when lowering a load under pressure.
  • Fixed Handle.
  • Compact design.
  • NATA tested.
  • Dacromet finish.

    Other Details:

    Part No. Application Gear
    Ratio
    Direct Lift Capacity
    (kg)
    Cable Type Hook Type Drum Hub
    (mm)
    Flange Diameter
    (mm)
    Drum Width I.D.
    (mm)
    Max Cable/Rope
    Capacity
    542696 Lifting 5:1 300 7.5m x 5mm Rope Snap Hook 50 130 50 20m x 5mm
    542730 Lifting 5:1 300 7.5m x 5mm Cable Snap Hook 50 130 50 20m x 5mm
    542732 Lifting 5:1 300 No Cable No Hook 50 130 50 20m x 5mm
