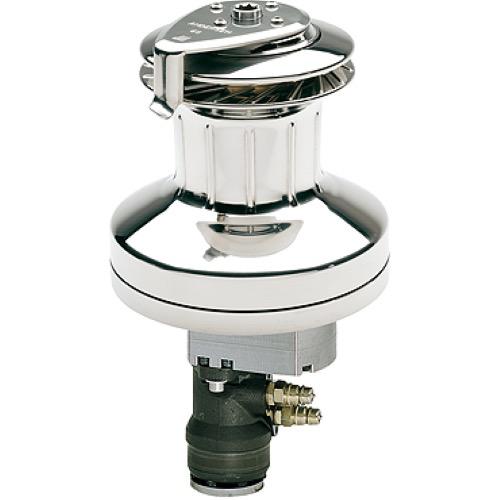

Full Stainless Steel Hydraulic Winch Single Speed
Full Stainless Steel Hydraulic Winch Single Speed
Full Stainless Steel Hydraulic Winch Single Speed
Full Stainless Steel Hydraulic Winch Single Speed
Full Stainless Steel Hydraulic Winch Single Speed
Andersen

Full Stainless Steel Hydraulic Winch Single Speed

No reviews yet
Part Number:
ANDERSEN hydraulic winches can be powered by an appropriately configured power pack which may already be installed on board for various other equipment such as a furler or anchor windlass.

Fitted with industry-standard hydraulic motors, our hydraulic winches are compatible with most common types of hydraulic systems found on board today’s larger yachts.

ANDERSEN Hydraulic Winches create a solid foundation for distributing power throughout your boat. Smooth running and reliable performance are not the only advantages provided by ANDERSEN Technology – design and versatility are equally important aspects of our products. Single speed hydraulic and two speed manual (2+1) ensures all the versatility and power you need to comfortably handle your sails.

Single Speed Hydraulic Winches can be found on ANDERSEN Winch model 52ST and up - Two Speed Hydraulic Winches on sizes 78ST and 110ST.

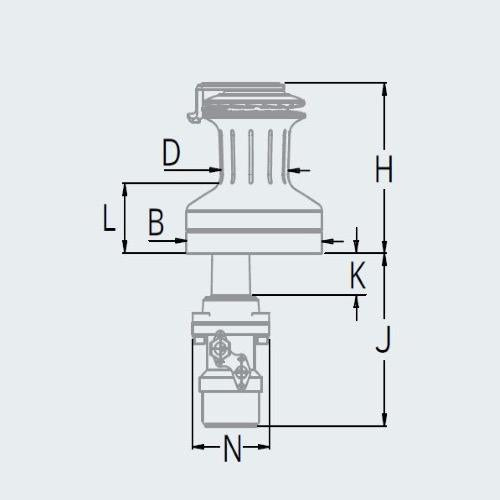

Other Details:

Product No. Wich Model
Line
Size
(mm)
Drum
"D"
(mm)
Base
"B"
(mm)
Height
"H"
(mm)
Line Entry
"L"
(mm)
Max Deck
"K"
(mm*1)
Motor Depth
"J"
(mm)
Motor Width
"N"
(mm)
Weight

(kg)
METRIC DIMENSIONS
RA2052013100 52ST 8 - 16 100 200 220 116 54 246 130 23
RA2058013100 58ST 8 - 18 115 230 251 121 54 252 130 30
RA2062013100 62ST 8 - 18 115 230 251 121 54 252 130 30
RA2068013100 68ST 10 - 18 140 280 273 130 60 232 130 41
RA2072013100 72ST 10 - 18 140 280 273 130 60 232 130 41

IMPERIAL DIMENSIONS
Product No. Wich Model
Line
Size
(in)
Drum
"D"
(in)
Base
"B"
(in)
Height
"H"
(in)
Line Entry
"L"
(in)
Max Deck
"K"
(in*1)
Motor Depth
"J"
(in)
Motor Width
"N"
(in)
Weight

(lb)
RA2052013100 52ST 5/16 - 5/8 3 15/16 7 7/8 8 11/16 4 3/16 2 1/8 9 11/16 5 1/8 50.7
RA2058013100 58ST 5/16 - 5/8 4 1/2 9 1/16 9 7/8 4 3/8 2 1/8 9 29/32 5 1/8 66.1
RA2062013100 62ST 5/16 - 5/8 4 1/2 9 1/16 9 7/8 4 3/8 2 1/8 9 29/32 5 1/8 66.1
RA2068013100 68ST 3/8 - 5/8 5 1/2 11 10 3/4 4 3/4 2 3/8 9 1/8 5 1/8 90.4
RA2072013100 72ST 3/8 - 5/8 5 1/2 11 10 3/4 4 3/4 2 3/8 9 1/8 5 1/8 90.4
*1 Extensions available to suit longer “K” dimensions.
