Full Stainless Steel 12V Electric Winch - Compact Motor Above Deck
Full Stainless Steel 12V Electric Winch - Compact Motor Above Deck
Full Stainless Steel 12V Electric Winch - Compact Motor Above Deck
Andersen

Full Stainless Steel 12V Electric Winch - Compact Motor Above Deck

No reviews yet

$18 Shipping - Free Shipping over $499 All across Australia

Customers Love Arnold's Boat Shop
Rated 4.2/5 based on 2,100+ reviews

42,000+ Products and Growing
The one-stop boat shop

Part Number:
Empowered Sailing
Andersen Compact Motor™ electric winches allow you to hoist and trim sails at the push of a button regardless of physical strength, so any crew member can easily and safely trim sails and control lines.

Ease of installation
The Andersen Compact Motor™ electric winch is available in two formats for either Above Deck or Below Deck motor placement. Motor gearbox and controller are integrated into one compact unit with no extra control box necessary. Simplified electrical installation requires just the connection of positive and negative power cables to the motor terminals and the connection of the push button using the included output cable.

Efficient, variable speed
The Andersen Compact Motor™ is a brushless DC motor carefully matched to a low profile planetary gearbox which requires less space for installation and draws considerably less current than traditional motor/gearbox configurations. Available in 12 volt and 24 volt models, Compact Motor™ electric winches operate at variable speed in proportion to the pressure applied to the push button for smooth and quiet operation.

Illuminated “intelligent” push button
Compact Motor™ winches are supplied with a push button with integrated LED which illuminates when power is applied to the system. The push button incorporates a hinged safety cover to prevent inadvertent winch operation and is water resistant rated to IP67. The push button also acts with the controller to to assist with trouble shooting, by flashing in the event of overload or where other system protection intervention occurs. A cable for connection of the push button is included for convenient installation.

Built-in protection
Integrated overload protection – The controller is pre-set to stop the winch if the maximum pull load is exceeded. Operation can resume within a few seconds when the load returns below the limit.Thermal overload protection – The motor is fitted with a thermal cutout that disables the motor in case of overheating; it automatically resets after the temperature returns to normal.

Manual operation
Two speed manual operation is always available as a backup; to winch beyond the pre-set maximum pull load (but below the winch MWL) or just for the experience.

Included with all above deck Compact Motor™ electric winches:
  • Circuit breaker with integrated controller
  • Motor has 140mm (5 1/2”) control cable included
  • Drain tube
  • Lip seal service kit.

    Other Details:

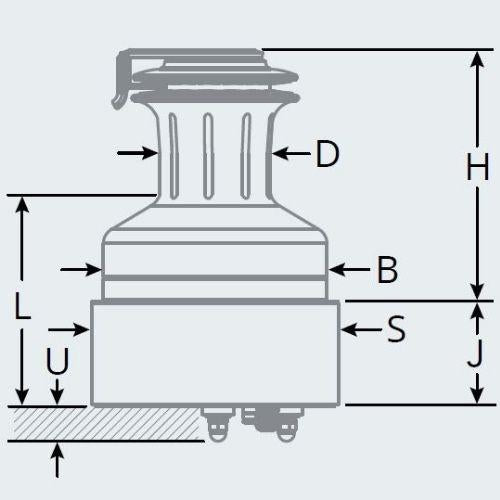

    Product No. Winch Model
    		 Line
    Size
    (mm)     		Drum
    "D"
    (mm)     		Base
    "B"
    (mm)     		Height
    "H"
    (mm)     		Line Entry
    "L"
    (mm)     		Motor Height
    "J"
    (mm)     		Motor Dia.
    "S"
    (mm)     		Motor Depth
    "U"
    (mm*1)    		 Weight

    (kg)
    METRIC DIMENSIONS
    RA2028015100 28ST 8 - 14 70 125 147 150 85 200 28 16
    RA2034015100 34ST 8 - 14 70 125 147 150 85 200 28 16
    RA2040015100 40ST 8 - 14 75 152 172 155 85 200 28 17
    RA2046015100 46ST 8 - 14 89 181 202 175 85 200 28 19
    RA2050015100 50ST 8 - 14 89 181 202 175 85 200 28 19
    RA2052015100 52ST  8 - 16 100 200 220 190 85 254 28 29
    RA2058015100 58ST 8 - 18 115 230 251 198 85 254 28 34
    RA2062015100 62ST 8 - 18 115 230 251 198 85 254 28 34
    RA2068015100 68ST 10 - 18 142 280 273 208 89 285 27 51
    RA2072015100 72ST 10 - 18 142 280 273 208 89 285 27 51

    *1 All Compact Motor™ Above Deck winches are supplied with 1 set of 41mm (1 5/8”) terminal extensions.
    Additional 877800 terminal extension kits available to order to suit longer “U” dimensions.

    *2 Sizes 68ST & 72ST Compact Motor™ electric winches are supplied with 2 x RA866000 control buttons and 2 x RD877610 1m (39”) control cables.
