Vetus

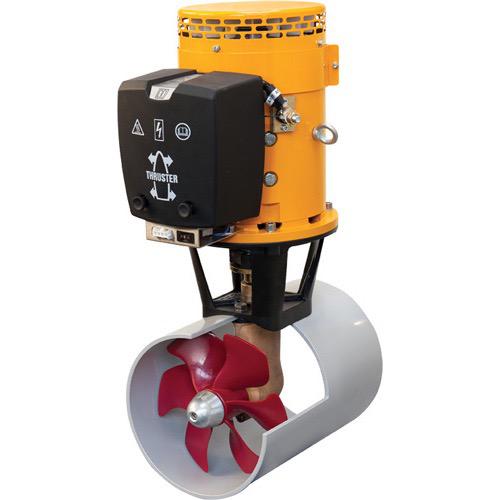

Extended Runtime Bow Thruster 24V - 95kgf - Tunnel Dia: 185mm
No reviews yet
- 3%
Extended Runtime Bow Thruster 24V - 95kgf - Tunnel Dia: 185mm
Extended Runtime Bow Thruster 24V - 95kgf - Tunnel Dia: 185mm
Images Indicative Only - Please carefully check product information and options
Vetus
Extended Runtime Bow Thruster 24V - 95kgf - Tunnel Dia: 185mm
No reviews yet
Part Number:

Delivers a lot extra!
An extension of the basic, time-tested DC thruster, developed for use in integrated boat control systems requiring long runtimes at high power outputs. For boats ranging from 36 to 75 feet. Extended runtime thrusters can be operated continuously for at least 7 minutes without overheating. There is no doubt that all boaters can benefit highly from these thrusters designed for joystick docking and other more demanding applications.

  • On-off, port-starboard controls
  • Simple and intuitive to operate
  • Simple installation, easy retrofit
  • 5 models with power outputs ranging from 95 KgF to 220 KgF
  • Battery powered at 12 and 24 volts
  • Run time 7-10 minutes continuous or combined in one hour.
  • Motor technology: direct current, series wound with carbon brushes

    Specifications

    BOW954DE
    Thrust in N (kgf) (effective power output) 1050 (105)
    Power kW (hp) 5.7 (8)
    Motor, reversible D.C.
    Tunnel diameter, internal, mm 185
    Weight excl. tunnel, incl. packaging, in kg 34
    Weight excl. tunnel, excl. packaging, in kg 30.7
    Voltage, Volt D.C. 24
    Current consumption, Amps. 350
    Operating time - continuously, in minutes 10
    Operating time - maximum per hour, in minutes 10
    Main fuse, “slow blow”, Amps. 355
    Batteries 12 Volt D.C., min. Ah / max. Ah @ 24 V 248/496
    Battery cables**, total length of positive and
    negative cables together, m/mm2
    0-21/70
    Battery main switch, model BATSW / type BPMAIN 600 / 24
    ** Based on VETUS battery cables

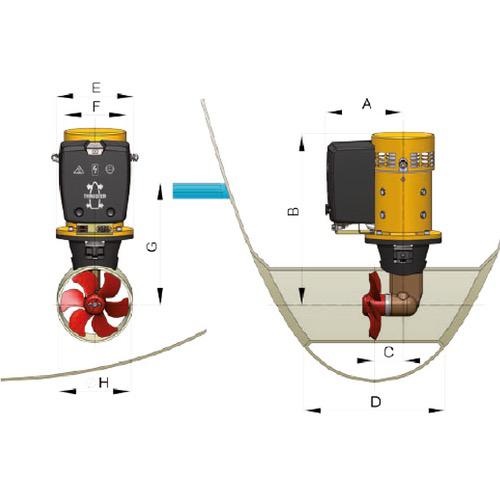

    Size (mm)
    A 222
    B 492
    C 77
    D min/max. 370/740
    E 240
    F 185
    G min. 185
    H 185
